Description

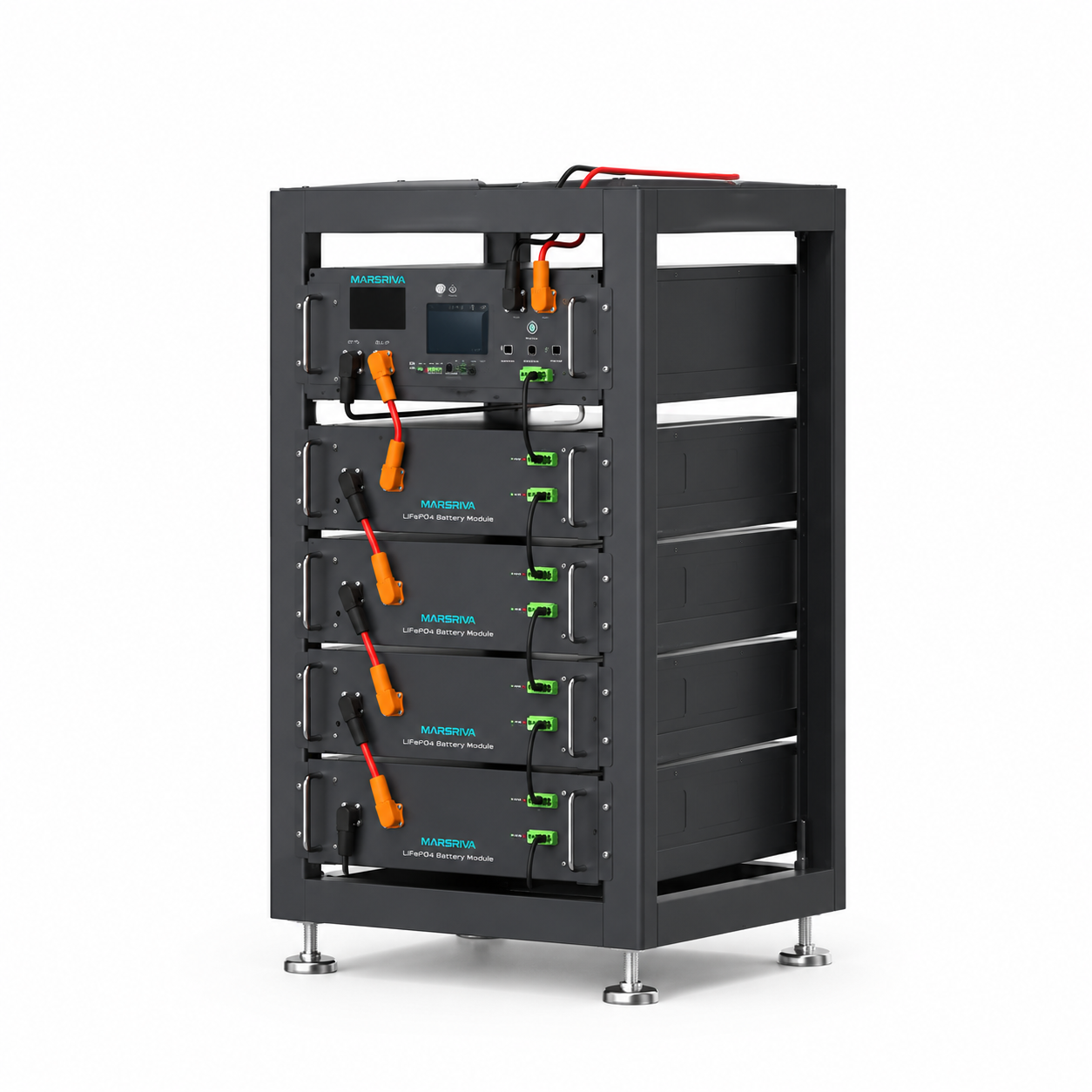

Battery Type – LiFePO4
Battery Module Number – 4 * 51.2V / 100Ah
Nominal Energy – 20.48kWh
Nominal Voltage – 204.8V
Working Voltage Range – 184V-224V
Rated Working Current – Charge / Discharge: 100A
Peak Working Current – Charge / Discharge: 125A (@25°C, 5S)
Cycle Life – ≥6000 @25°C, to 70% EOL
Design Life – ≥10 years
Self-consumption – ≤3.5% per month @25°C
Communication – CAN / TCP / IP
Installation Method – Floor-standing
Protection Level – IP20
Parallel Capacity – up to 5 units
Working Temperature Range – Charge: 0 to 55°C; Discharge: -20 to 55°C;
Weight (kg) – 201.4
Dimension (W × D × H) (mm) – 553×503×1011
