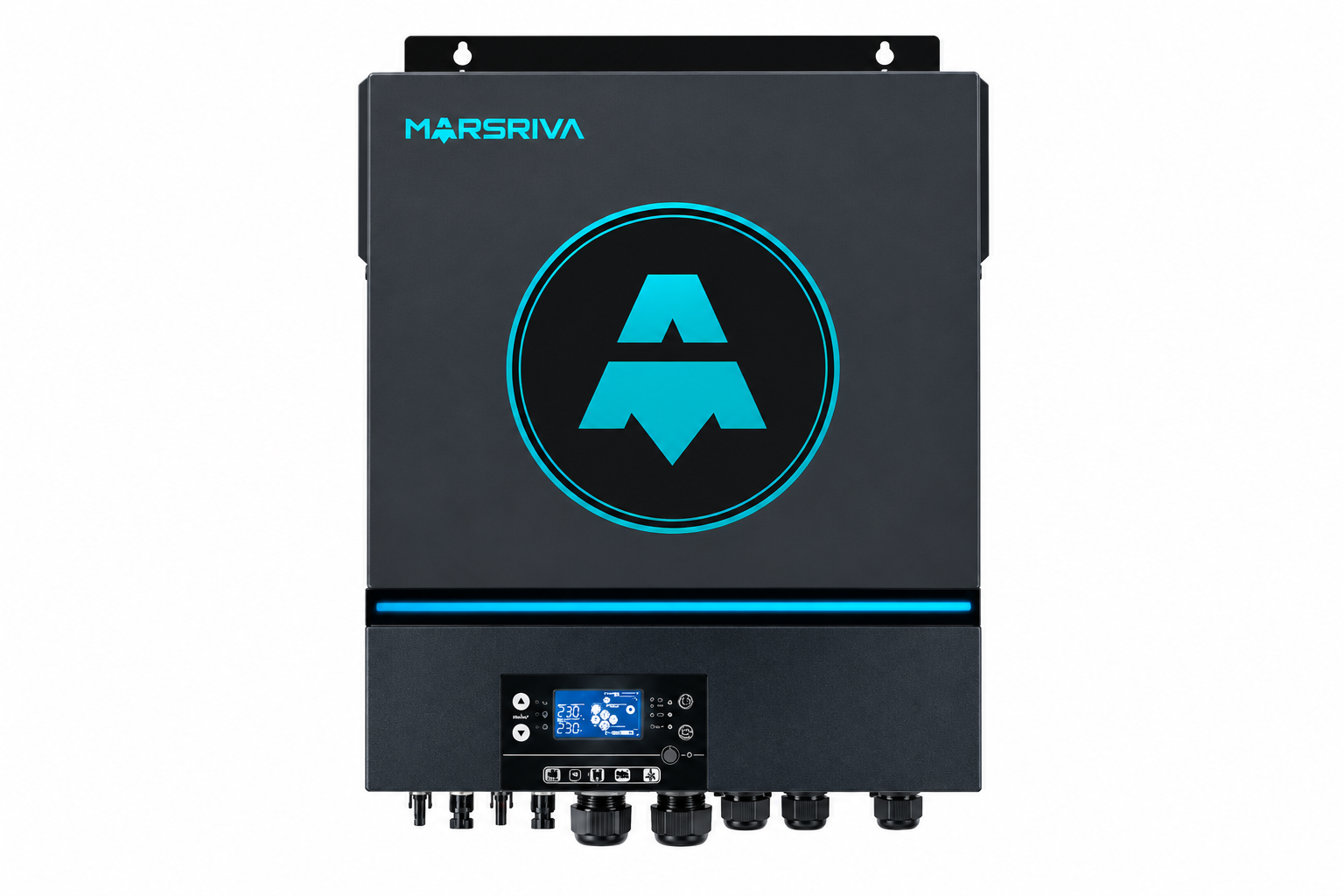

MR-SPF12K-LP1-TL20E SPECIFICATIONS:
| Parameter | Value |
|---|---|
| Model | MR-SPF12K-LP1-TL20E |
| Rated Power | 12kVA / 12kW |
| Parallel Capability | Yes, 6 units |
| Output | |
| Output Voltage Regulation | 230VAC ± 5% |
| Nominal Output Frequency | 50Hz / 60Hz |
| Wave Form | Pure sine wave |
| Transfer Time | 10ms (For PC); 20ms (For Home Appliances) |
| Surge Power | 24000VA |
| Peak Efficiency | 95% at Line mode, 93% at Inverter mode |
| Optional DC Output | 12VDC ± 5%, 100W |
| Input | |
| Nominal Input Voltage | 230VAC |
| Input Voltage Range (Selectable) | 170 – 280VAC (For PC); 90 – 280VAC (For Home Appliances) |
| Nominal Input Frequency | 50Hz / 60Hz (Auto sensing) |
| Battery | |
| Nominal Battery Voltage | 48VDC |
| Floating Charging Voltage | 54VDC |
| Overcharge Protection | 63VDC |
| AC Charging & MPPT Solar Charging | |
| AC Charging Algorithm | 3 step |
| Max. PV Array Power | 15000W (7500W*2) |
| MPPT Operating Voltage Range | 90VDC – 450VDC |
| Max. PV Array Open Circuit Voltage | 500VDC |
| Max. PV Input Current | 27A*2 (MAX. 45A) |
| Max. AC Charging Current | 200A |
| Max. Charging Current | 200A |
| Physical & Communication | |
| Dimension, D x W x H (mm) | 147.4 × 432.5 × 553.6 |
| Net Weight (kg) | 18.4 |
| Communication Interface | USB, RS232, BMS(485,CAN), WiFi Module, Dry-contact |
