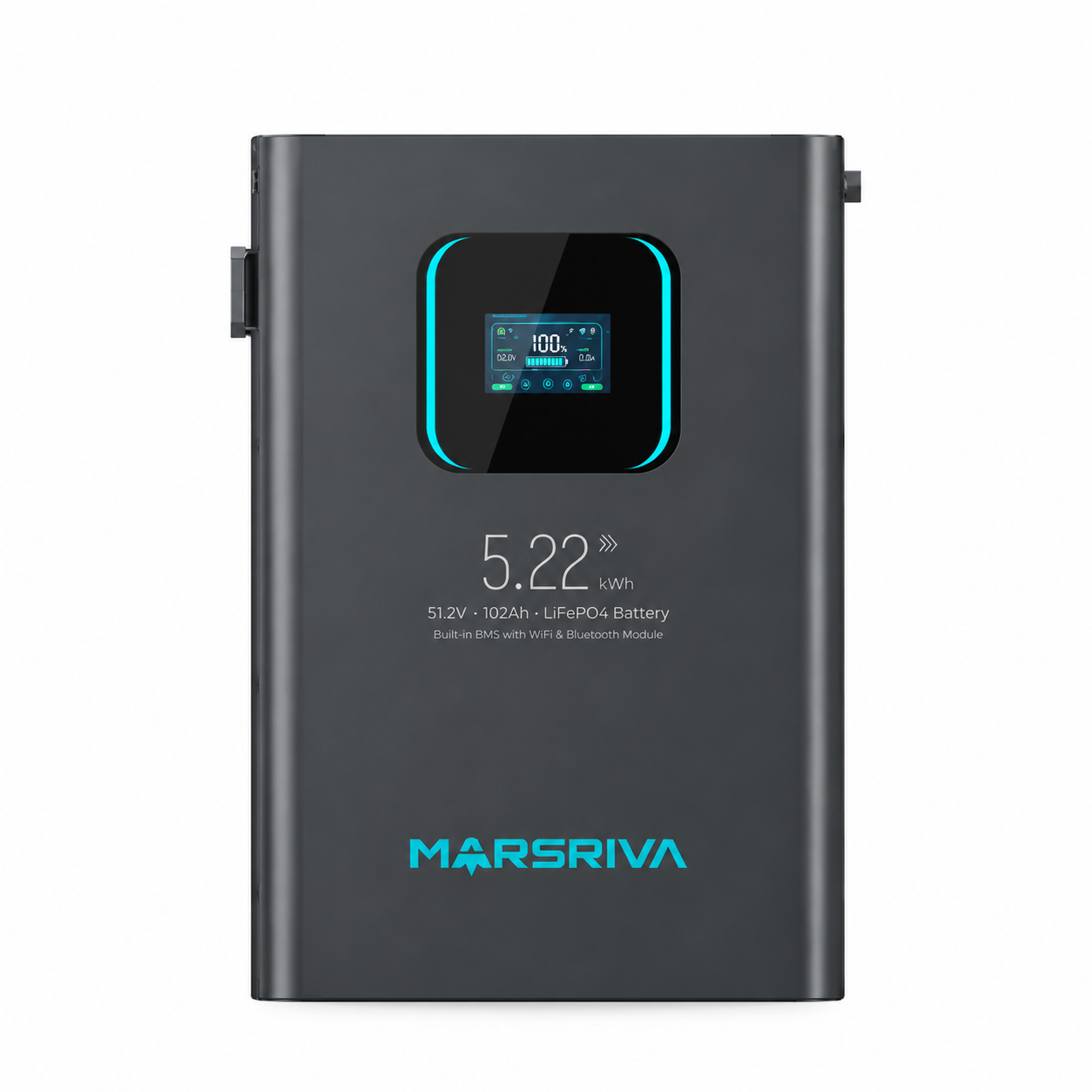

Marsriva - Low Voltage Battery - LFP48 100

Marsriva – Low Voltage Battery – LFP48 100

MR-LFP48-100-WMD

LiFePO4 Battery (Grade A)
5.22kWh (51.2V / 102Ah)

  • Iron phosphate-lithium power battery
  • High energy density, high capacity, longer back up time
  • Support using under wide temperature range, 6000+ cycle life
  • Built-in BMS
  • Support connected in parallel mode for expansion
  • Long warranty period
  • Floor standing or wall mount for simple installation
  • Constructed with SPCC high-quality cold-rolled steel for robust support
  • 3.5-inch touch screen for easy operation
  • Built-in aerosol fire extinguisher
Categories: , Product ID: 20729
Get Quote

Description

Specifications
Parameter Value
Model MR-LFP48-100-WMD
Battery Type LiFePO4 Battery (Grade A)
Nominal Voltage 51.2V
Rated Capacity 102Ah
Rated Energy 5.22kWh
Charging Current Nominal 50A; Max. 105A
Discharging Current Max. 120A
Battery Cycle Life ≥6000 cycles @25°C, to 70% EOL
Design Life ≥10 years
Parallel Capacity Up to 15 units
Power Off Self-Consumption ≤200uA
Cell Balance Function Passive Balance
Communication Interface BMS(485/CAN), RS232, Parallel, WiFi&Bluetooth
Monitoring 3.5-inch LCD, PC software, Mobile APP
Operating Ambient Temperature Charge: 0°C to 55°C; Discharge: -20°C to 55°C
Storage Temperature 0°C to 40°C
Operating Humidity 5% – 95%
Dimensions, W×D×H(TH) 398 × 198.5 × 598.5mm
Weights ≈44.5kg
