Description

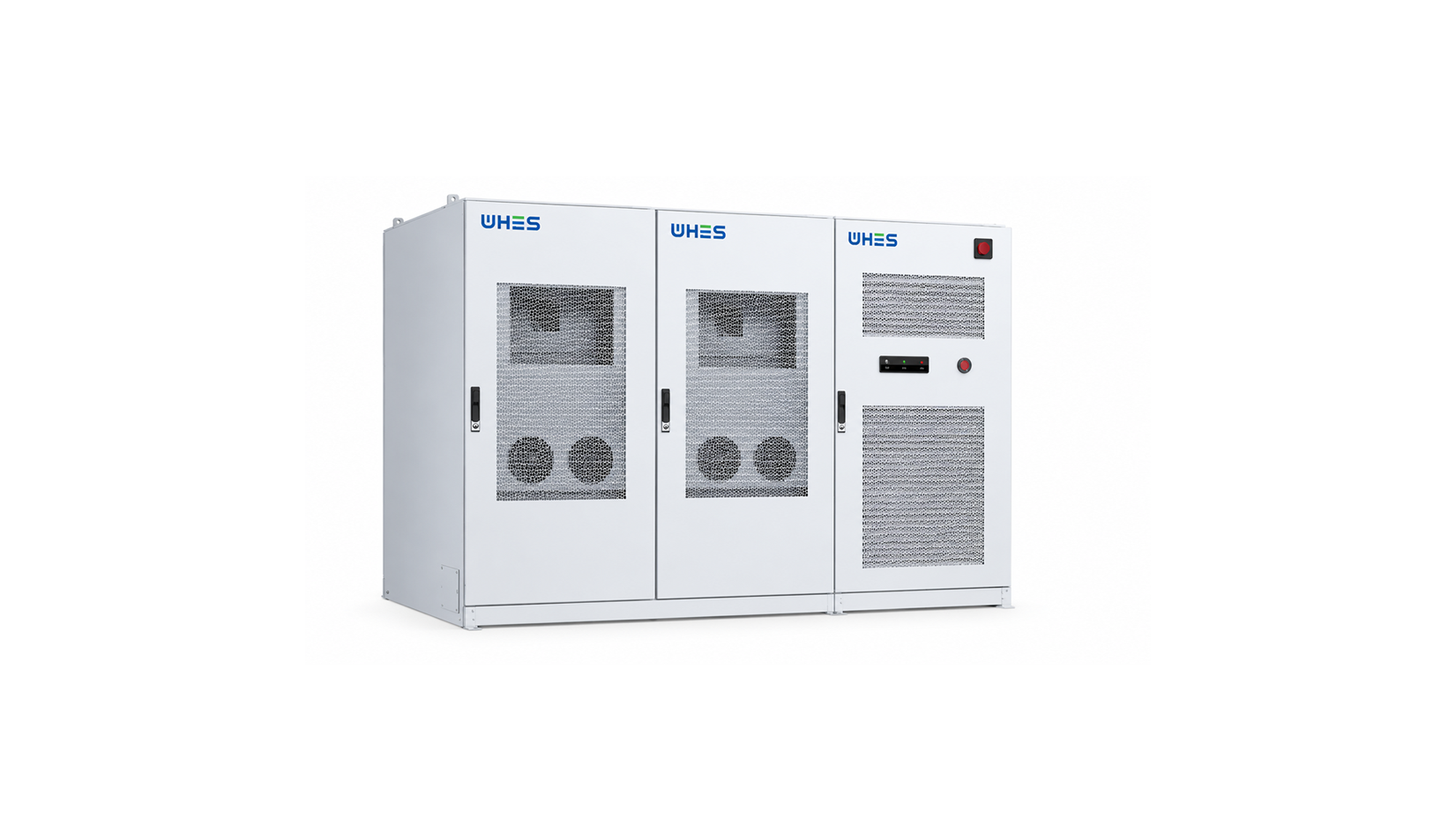

PC-G2 Technical Specifications
Model: IA-250kW/500kWh
Battery
- Battery Type: LFP, 3.2 V / 306 Ah
- Battery PACK Configuration: 1P*52S
- Battery Capacity: 509 kWh (50.92 kWh * 5 * 2)
- Rated Battery Voltage / Voltage Range: 832 V / 728…936 V
- Max. Charging/Discharging Current: 102.3 A*4
- Max. Charging/Discharging Power: 244 kW / 254.8 kW
AC Parameters (On-grid)
- Rated Output Power: 250 kW
- Rated Voltage: 3/N/PE, 400 V (N only for Auxiliary power supply)
- Voltage Range: 360…440 V
- Rated Output Current: 360.8 A
- Rated Frequency: 50/60 Hz
- Total Harmonic Distortion (THDi): < 3%
- Power Factor: -1…+1
General Data
- Topology: Non-isolated
- Dimensions (W*D*H): 1940*1500*2100 mm (Battery Cabinet); 1000*1500*2100 mm (PCS Cabinet)
- Weight: ~4.5 t (Battery Cabinet); ~0.7 t (PCS Cabinet)
- Operating Temperature Range: -20°C…+55°C (derating @ > 45°C)
- Relative Humidity: 0%…100%
- Altitude: ≤ 2000 m
- Cooling: Smart Air Cooling (PCS) Liquid Cooling (Battery)
- Noise: < 65 dB
- Ingress Protection: IP 55
- Corrosion: C5
- Display: LED / APP
- Firefighting: Smoke Detector, Heat Detector, Alarm Sounder, Aerosol, Sprinkler; Optional: Flammable Gas Detector, Vent Plate
- Communication: RS485 / CAN / Ethernet
- Installation: Floor-standing
- Standard¹: IEC62619, IEC63056, IEC62477, IEC61000, EN50549-10, EN50549-2, VDE4110, UL9540A, UN38.3
Recommend Order Options
| 2h System | 4h System | 6h System | 8h System |
|---|---|---|---|
| AC-250kW-2B10 DC-500kWh-EA10 |
AC-250kW-2B10 2* DC-500kWh-EA10 |
AC-250kW-1B10 3*DC-500kWh-EA10 |
AC-250kW-2B10 4* DC-500kWh-EA10 |
