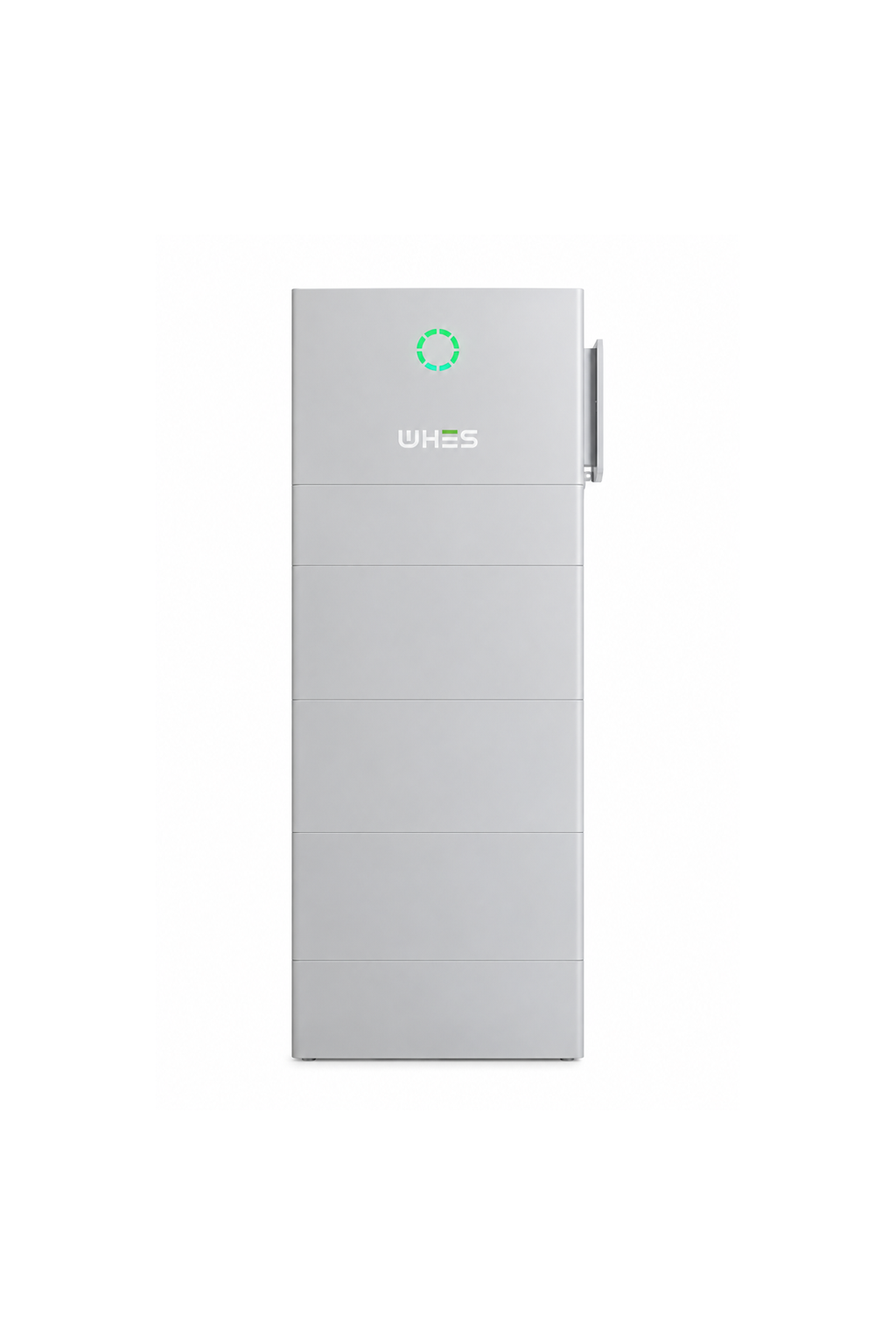

Description
PP-T1 Technical Specifications
Model-specific values
| Parameter | WH-TIA502 | WH-TIA602 | WH-TIA802 | WH-TIA103 | WH-TIA123 | WH-TIA133 |
|---|---|---|---|---|---|---|
| PV Input | ||||||
| Max. PV Input Power | 10000 Wp | 12000 Wp | 16000 Wp | 20000 Wp | 20000 Wp | 20000 Wp |
| AC Input/Output | ||||||
| Rated Input/Output Power | 10000 W / 5000 W | 12000 W / 6000 W | 16000 W / 8000 W | 17900 W / 10000 W | 17900 W / 12000 W | 17900 W / 13000 W |
| Max. Apparent Input/Output Power | 10000 VA / 5000 VA | 12000 VA / 6000 VA | 16000 VA / 8000 VA | 17900 VA / 10000 VA | 17900 VA / 12000 VA | 17900 VA / 13000 VA |
| Rated Input / Output Current | 16.2 A / 8.1 A | 19.2 A / 9.6 A | 25.6 A / 12.8 A | 26 A / 16 A | 26 A / 19.2 A | 26 A / 20.8 A |
| Max. Input / Output Current | 16.2 A / 8.1 A | 19.2 A / 9.6 A | 25.6 A / 12.8 A | 26 A / 16 A | 26 A / 19.2 A | 26 A / 20.8 A |
| EPS Output | ||||||
| Rated Output Power¹ | 5000 W | 6000 W | 8000 W | 10000 W | 12000 W | 13000 W |
| Peak Apparent Output Power | 2 times of rated power, 10s | 2 times of rated power, 10s | 2 times of rated power, 10s | 1.6 times of rated power, 10s | 1.33 times of rated power, 10s | 1.23 times of rated power, 10s |
| Rated Output Current | 8.1 A | 9.6 A | 12.8 A | 16 A | 19.2 A | 20.8 A |
Values common to all models
PV Input
- Max. Input Voltage: 1000 V
- Rated Input Voltage: 620 V
- Start-up Voltage: 145 V
- MPPT Voltage Range: 180…980 V
- Max. Input Current: 42 A (16 A * 1, 26 A * 1)
- Max. Input Short Circuit Current: 56 A (20 A * 1, 36 A * 1)
- No. of MPPT: 2
- No. of PV Strings per MPPT: 1/2
Battery
- Battery Type: LFP, 3.2 V / 52 Ah
- Battery PACK Configuration: 1P*30S, 4.992 kWh
- Battery Capacity: 9.98…29.9 kWh
- Voltage Range: 160…700 V
- Max. Charging/Discharging Current: 30 / 30 A
AC Input/Output
- Rated Output Voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V, 240 V / 415 V
- Rated Frequency: 50/60 Hz
- Power Factor: 1 (-0.8…+0.8 adjustable)
- Total Harmonic Distortion (THDi): < 3%
EPS Output
- Rated Output Voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V, 240 V / 415 V
- Rated Frequency: 50/60 Hz
- Back-up Switch Time: < 10 ms
- Power Factor: 1 (-0.8…+0.8 adjustable)
- Total Harmonic Distortion (THDi): < 2%
Efficiency
- PV Max. Efficiency: 98.00%
- PV Europe Efficiency: 97.00%
Protection
Over/Under Voltage Protection, DC Isolation Protection, DC Injection Monitoring, Residual Current Detection, Anti-islanding Protection, Over Load Protection, Battery Input Reverse Polarity Protection, PV Reverse Polarity Protection, Surge Protection, Over Heat Protection
General Data
- Topology: Non-isolated
- Dimensions (W*D*H): 600*350*450 mm (Inverter module), 600*350*210 mm (High Voltage Box and Base), 600*350*305 mm (Battery module)
- Weight: 33 kg (Inverter module), 11 kg (High Voltage Box and Base), 57 kg (Battery module)
- Operating Temperature Range: -20°C…+55°C²
- Relative Humidity: 0%…95%
- Altitude: ≤3000 m
- Cooling: Natural Convection
- Noise: < 25 dB
- Ingress Protection: IP 65
- Display: LED / APP
- Communication: RS485 / CAN
- Installation: Floor-standing
- Standard³: UN 38.3, IEC 61000, IEC 62619, IEC 63056, IEC 62109, IEC 62040, EN 50549-1/-10, C10/11, EIFS 2018:2, VDE-AR-N 4105, RfG:2015, NC RfG:2018, PTPiREE:2021, AS/NZS 4777.2, G98/G99, CEI 0-21
