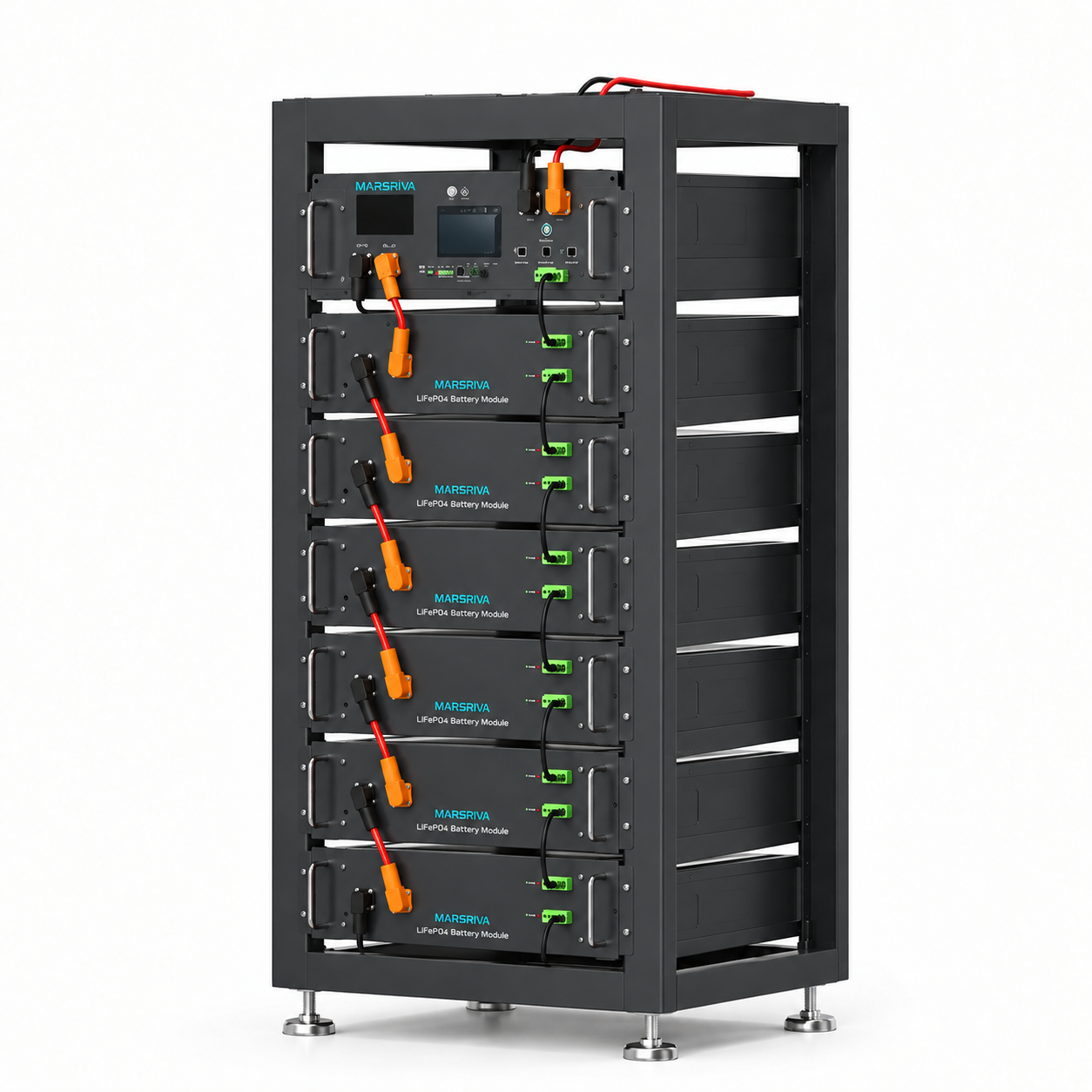

Marsriva - HV Battery Rack - BP30HRT

Marsriva – HV Battery Rack – BP30HRT

• High-quality Battery Cell: High-quality LiFePO4 cell with 6000+ cycle life, for higher safe performance and longer cycle life.
• Convenient Installation: The quick installation and standard snap-in design of battery module make it easy to install and maintain.
• Flexible Configuration: Flexible modular design system which can expand capacity and power by connecting multiple battery modules in series.
• Intelligent BMS: The integrated BMS provides optimal performance and protection, automatically manages charge and discharge and equalize batteries voltage.
• Wide Temperature Range: With an operating temperature range of -20°C to 55°C, delivering good working performance and cycle life in various environments.
• Eco-Friendly: Non-toxic, non-polluting, and environmentally friendly module is designed with sustainability in mind.

Categories: , Product ID: 20743
Get Quote

Description

Battery TypeLiFePO4
Battery Module Number – 6 * 51.2V / 100Ah
Nominal Energy – 30.72kWh
Nominal Voltage – 307.2V
Working Voltage Range – 276V-336V
Rated Working Current – Charge / Discharge: 100A
Peak Working Current – Charge / Discharge: 125A  (@25°C, 5S)
Cycle Life – ≥6000 @25°C, to 70% EOL
Design Life – ≥10 years
Self-consumption – ≤3.5% per month @25°C
Communication – CAN / TCP / IP
Installation Method – Floor-standing
Protection Level – IP20
Parallel Capacity – up to 5 units
Working Temperature Range – Charge: 0 to 55°C; Discharge: -20 to 55°C;
Weight (kg) – 309.6
Dimension (W × D × H) (mm) – 553×503×1620
